1.What is a Single Phase Isolation Transformer?
In single-phase isolation transformers their essential element is that of electrical isolation which exists between the primary and secondary circuits. The transformers aid in insuring sensitive equipment against electrical shocks, noise, surges, and interference of ground loop. With the increase in the requirement of clean and non-varying power both in an industrial and residential setup, single-phase isolation transformers have evoked into handy equipment of any modern Electric system.
With the good history of the manufacturing of power conditioning equipments, Vertex Power Solutions is a trusted manufacturer of the single phase isolation transformers available in varied range of 1 to 25 kva. They are also a quality and customizing leader isolation transformers manufacturer.
Looking for a trusted in India? Discover Vertex’s 1–25 kVA models built for reliability, safety, and performance.
2. What is the Mechanism of an Isolation Transformer?
Under an isolation transformer, the energy is transferred by magnetic coupling and does not have a direct electrical conduction between the input and output. The design is 1:1 or 2:1 winding ratio and has several electrostatic shields to combat the capacitive coupling and high-frequency noise. Common-mode noise rejection The transformers of Vertex also provide more than 100 dB of noise rejection on the common-mode currents, so that the connected systems work in a stable and interference-free environment.
3.Single phase or Three Phase Why?
Although three-phase transformers are suited in applications involving large powers in the industrial sectors, when applied as a specific form of protection of individually, or smaller powered electrical loads, it is much better to use single phase isolation transformers.
They are small, affordable and can be installed with less stress and this is why they are ideal to:
- Laboratory equipment
- Office automation equipments
- Point-of-sale Cinsic
- Small size CNC machines
- Medical devices
One of those targeted applications is on the 125kVA and below range of transformers where Vertex Power Solutions offers other high-performance transformers.

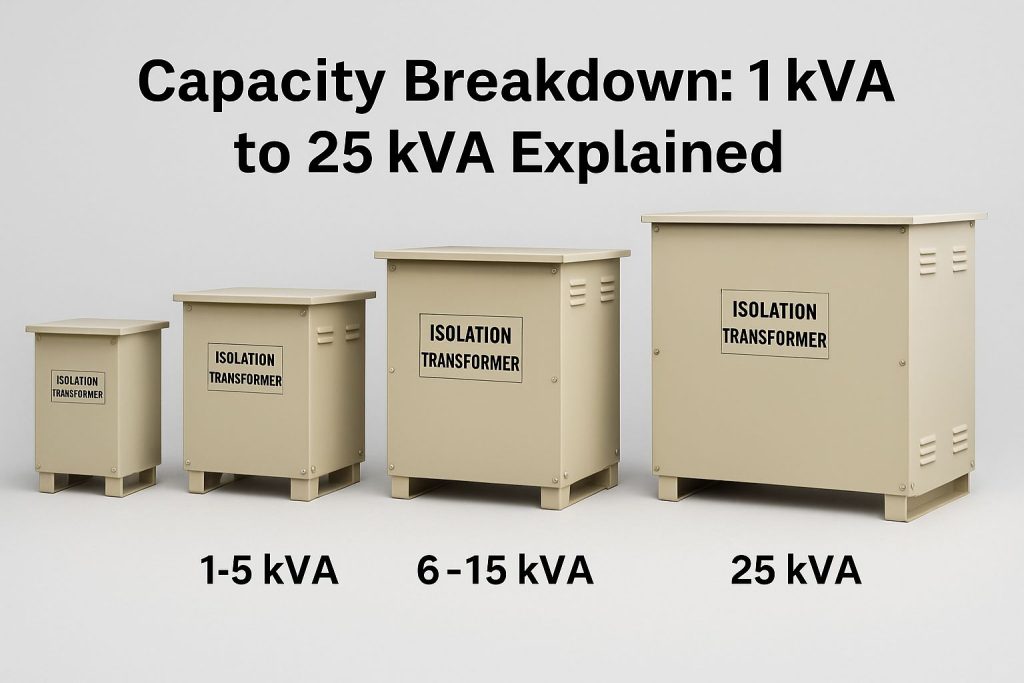

4.Explained: Capacity Breakdown 1 kVA to 25 kVA:
The knowledge of capacity assists the user to choose the appropriate transformer according to the requirements they need to satisfy. Moreover, studying the value range of isolation transformer price will enable the customers to match the technical requirements with cost demands. Here is a way in a nutshell
- 1-5 kva: Suitable to low-power and small equipment like routers, CCTV cameras and laboratory instruments.
- 6 15 kVA: Excellent in medium-powered applications such as server, small design of medical or office products.
- 16 25 kVA: They are suitable in a more stressful environment like textile equipment, precision testing equipment, and laser cutters.
The transformers produced by Vertex may have customization with regard to the voltage ratings, insulation class and level of shielding to fit the requirements of application.
5.The major advantages of Isolation Transformers Use
These are some of the greatest benefits of fitting a single phase isolation transformer:
- Electrical Shock Protection: Makes sure both individuals and equipment safety.
- Noise Filtering HazTe Reduces harmonic distortion and noises at high frequencies.
- Ground Loop Elimination: avoids unwanted paths of current which become interfering.
- Voltage Spike Mitigation: Guard against surges, transients and line disturbances.
- Longer Equipment Service Life: Fluctuation-free power feed increases service life of the device.
Vertex transformers are a combination of high-quality materials, such as insulation, quality shielding and thermal protection to enhance long term performance.
Want better protection for your sensitive equipment? Upgrade to Vertex’s robust isolation transformers and extend your system’s life today.
6.Best Applications in residential, medical and industrial scenarios
Single-phase isolation transformers find a lot of applications in the following sectors:
Medical MRI scanners, diagnostic devices and patient monitoring systems
- Industrial: capcha carvings, industrial cutters, control panels
- Commercial: POS systems, printers and telecommunications devices
- Lab: R&D instrument, test benches and metering pixels
Design Vertex transformers that come with optional surge protection device (SPD) to ensure extra safety is designed to comply with IS:2026.
7.Comparison of Autotransformers and conventional transformers
Feature | Isolation Transformer | Autotransformer | Conventional Transformer |
Electrical Isolation | Yes | No | Yes |
Noise Rejection | High | Low | Moderate |
Safety | Excellent | Moderate | Good |
Surge Protection | Yes | No | Optional |
Cost | Higher | Lower | Moderate |
Autotransformers are cost-effective, whereas they lack electrical isolation. In sensitive setting the Vertex isolation transformers offer safety and accuracy.

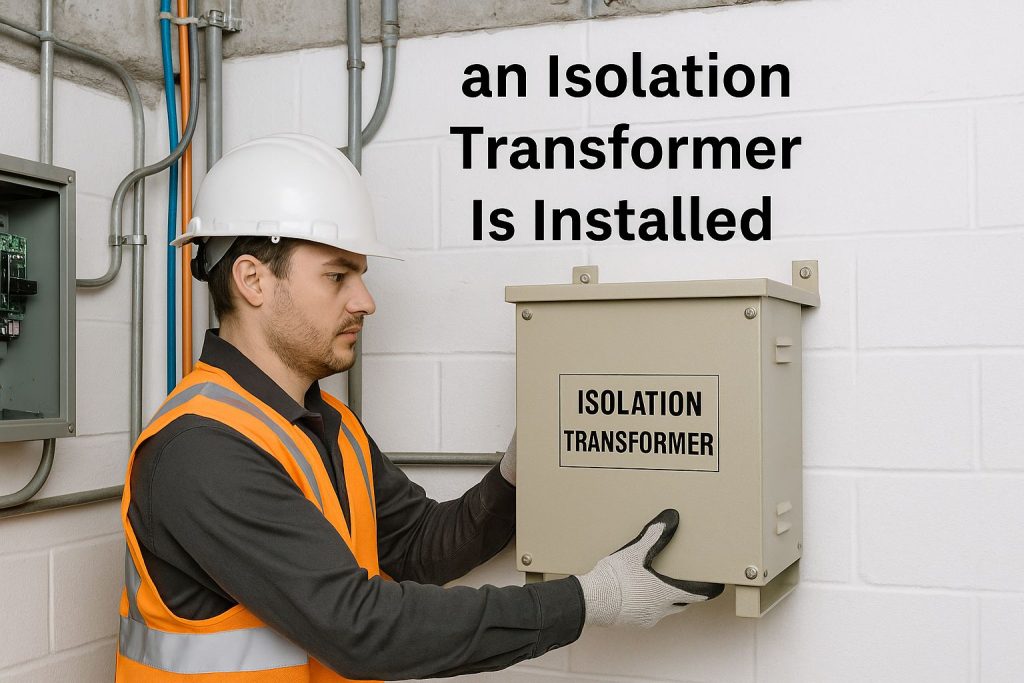

8.How to Install: Safety, Hints and other Things to Remember
Appropriate installations are vital in installation of isolation transformer to achieve optimal performance:
- Make sure that it is grounded to minimize chances of shock.
- Be sure to keep a sufficient facility around the unit.
- Quality connectors should be used and tight connector terminal fitting should be inspected.
- Do not let transformer become dusty and wet.
To use heavy-duty applications, avoid air-cooled, and select the oil-cooled units.
Vertex also provides air-cooled and oil-cooled models based upon the needs and the cooling requirement as well as the placement environment.
9.The selection of an Appropriate Transformer to Utilize with your Load
The appropriate choice of the isolation transformer consists of knowing the following:
Load Power Consumption- Find out average and peak loads in kVA.
- Voltage Requirements: The equipment input/ output voltage designations should conform to equipment ratings.
- Shielding requirements: multi-shields will lower electric interference of vital apparatus.
- Cooling type: select air cooled type when trying to be quiet indoors, or oil cooled type when trying to achieve greater capacity in systems.
- Physical Space: &&Answermathbf bother about being able to fit the transformer into your layout, and ventilation arrangement.
Vertex engineering team aids clients in the selection and customization of transformers according to their specific power profile and the nature of the environment.
10.Conclusion-Why a Quality Isolation Transformer Matters
A single-phase isolation transformer can not be avoided in applications where quality of power, safety and equipment life are important.
Are you security security-sensitive lab equipment or power stabilization of office systems? Then, your choice of the proper capacity and configuration is critical. Innovation Vertex Power Solutions offers a range of transformers with a nominal rating range of 1-25 kVA and the best efficiency corresponding to the requirements of the industry and durability during a long period of operation.
Having more than a quarter of a century of experience, Vertex offers trusted and tailor-made power solutions to fulfill the demands in various industries.
Find your isolation transformers in their wide variety to strengthen the safety and performance of your power system.
Ready to boost your power system’s safety and stability?
Visit Vertex Power Solutions to explore customizable transformer solutions tailored to your exact needs.
