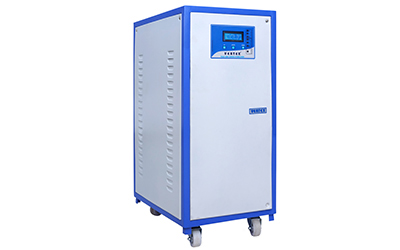

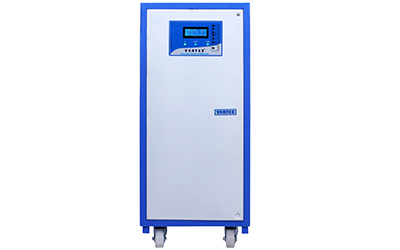

Servo Voltage Stabiliser Three Phase - Aircooled

Servo Voltage Stabiliser:

Three Phase - Aircooled 3 kVA - 150 kVA.

VERTEX Servo Voltage Stabiliser uses an intelligent Microcontroller (DSP) based control system to protect industrial machinery from damage caused due to high & low voltage fluctuations. Essentially, it prolongs the useful life and reliability of critical machinery. VERTEX is one of the pioneers to develop and introduce a Microcontroller (DSP) based control system in the Servo Stabiliser Industry. Three Phase aircooled voltage stabilisers consist of three single phase units connected in star. The voltage sensing & correction is done in each phase independently with respect to the neutral, this is the reason why they are also called unbalanced type voltage stabilisers.

Product USPs / Salient Features

  • iconHighly reliable Microcontroller (DSP) based control system
  • iconDigital LCD display to monitor I/P & O/P Voltages (L-N & L-L), Output Current (R/Y/B) & Frequency
  • iconUser settable parameters on the front panel for O/P Voltage, High/Low cut-off limits & Manual / Auto Restart time delay, with great accuracy
  • iconHigher response time through its Microcontroller design
  • iconCut-off protection operates with graded time delay
  • iconSmooth operation with no hunting OR overshooting
  • iconSuitable for Unbalanced loads and input conditions
  • iconHigh Efficiency > 98%

Product Applications:

  • Textiles, Spinning, Garment, Knitting, DyeingTextiles, Spinning, Garment, Knitting, Dyeing
  • CNC Machine Tools, Robotics, Fabrication, Wood Cutting, GraniteCNC Machine Tools, Robotics, Fabrication, Wood Cutting, Granite
  • Food Processing, Packaging, Printing Press, Agro, Rubber, and Leather IndustriesFood Processing, Packaging, Printing Press, Agro, Rubber, and Leather Industries
  • Colour labsColour labs
  • Hospitals, Pharmaceuticals, Testing LabsHospitals, Pharmaceuticals, Testing Labs
  • Office / Commercial Establishments / UPS BypassOffice / Commercial Establishments / UPS Bypass
  • Centralised AC, Lifts, LightingCentralised AC, Lifts, Lighting
  • Mobile Towers, Petrol Pumps, Residential (Villas), Showrooms, Solar PlantMobile Towers, Petrol Pumps, Residential (Villas), Showrooms, Solar Plant

Technical Specifications:

VERTEX Servo Voltage Stabiliser - Three Phase Aircooled

Type of Stabiliser Three Phase Stabiliser - Unbalanced Type
Construction Indoor Purpose
Type of Design Servo Stabiliser with O/P sensing feed-back system
Type Of Cooling Aircooled
Servo Motor Type AC Synchronous Stepper Motor
Input Voltage Range 360V - 460V /340V - 460V / 340V - 480V / 310V - 480V Designed as per customer requirement
Input Frequency 47 Hz - 53 Hz
Output Voltage 415 V ; User Settable - 400 V (OR) 380 V (L - L)
Output Voltage Regulation ± 1 %
Control Design Microcontroller (DSP) based Control System
Waveform Distortion NIL (Output Waveform same as Input Waveform)
Effect of Load PF on O/P Voltage NIL
Correction Speed > 60 V/ Sec
Response Time 10 milli sec
Efficiency ≥ 98 %
Under / Over Voltage Cut-Off Upper Limit +5% (Above set O/P Voltage)

Lower Limit -10% (Below set O/P Voltage)
Short Circuit Protection HRC Fuse (OR) Optional MCB / MCCB at Input
Output Over Load Protection Electronic Operative above 110% of rated output current
Phase Reversal Protection Built-in
Single Phasing Prevention Built-in
Stabiliser “ON/OFF” Operation User Settable Auto Restart 1 sec - 998 sec

User Settable Manual Restart
Display Type Backlight LCD Display (Will vary as per the Control system)
Parameters Displayed I/P & O/P Voltage (L-L & L-N), Hz, Amps R-Y-B

Will vary as per the Control system used
Front Panel Indications LED Indication for - Input Present, Output Normal
Front Panel User Interface MENU, UP/DOWN KEY, ENTER/SET KEY
Event Recorder Fault Analysis - Check for the Control System Used
Input / Output Connection Input / Output — Terminal Plate with Nut-Bolt arrangement
Emergency Manual Bypass Built-in
Output Contactor Built-in
Surge Protection Device (SPD) Optional
Ambient Temperature 0° C to 50° C
Rating in kVA 3 kVA to 150 kVA
Design Standards As per IS:9815

Custom Designed:

  • right-point Ratings above 150 kVA.
  • right-point Wide / Short input voltage range.
  • right-point Specific output voltage.
  • right-point Outdoor Models.
