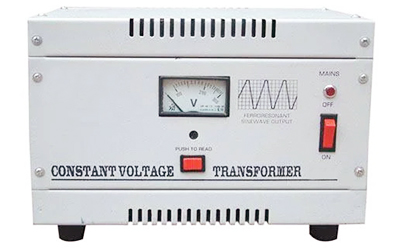

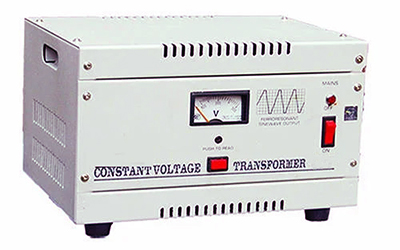

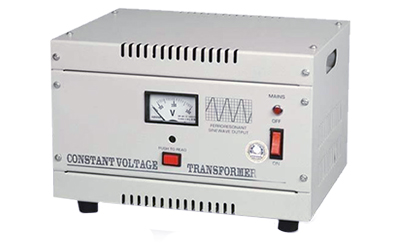

Constant Voltage Transformer (CVT)

Constant Voltage Transformer (CVT):

Single Phase: 500 VA - 5000 VA - Aircooled

Constant Voltage Transformers (CVT) offer unquestionably the best protection against voltage fluctuations and power volatility. Also known as ferroresonant transformers, CVTs are non-linear transformers that leverage magnetic properties to limit power supply, arrest surges and spikes, instantly correct output voltage, and maintain an almost constant output voltage with a reasonably steady supply frequency. Vertex engineers a wide range of highly reliable and effective Constant Voltage Transformers to meet your power conditioning and power protection requirements.

Vertex specializes in designing and developing customized Constant Voltage Transformers based on your specific industrial needs. Our team is proficient in devising a perfect power conditioning solution based on your manufacturing layout, power requirements of various machinery, safety protocols, and energy efficiency goals. We design CVTs to ensure a significant reduction in outages, breakdowns, equipment damage, and electricity loss.

Product USPs / Salient Features

  • iconHighly Reliable - No moving parts
  • iconFaster voltage correction, almost instantaneous
  • iconIntrinsic current limiting and short circuit protection
  • iconShort term overload capability
  • iconVery high line transient/spike rejection capability
  • iconExcellent input-to-output isolation characteristics

Product Applications:

  • Computers, Data Processing EquipmentComputers, Data Processing Equipment
  • Audio/Video EquipmentAudio/Video Equipment
  • Photo Processing EquipmentPhoto Processing Equipment
  • Bio-Medical EquipmentBio-Medical Equipment
  • Telex, Fax, Cash Registers, Electronic Type Writers, Control PanelsTelex, Fax, Cash Registers, Electronic Type Writers, Control Panels

Technical Specifications:

VERTEX Constant Voltage Transformer (CVT) - Single Phase - Aircooled

Parameters Specifications
Type of CVT Ferro-Resonant
Type of Application Indoor Application
Type Of Cooling Aircooled
Input Voltage Range 180 V - 260 V
Input Frequency 50 Hz ± 0.5%
Output Voltage 220 / 230 V ± 1%
Output Voltage Regulation 2% at no load to full load
Output Waveform Sinusoidal
Waveform Distortion 5% (approx under full load)
Load Factor 0.75% lag to 0.9% lead
Efficiency 90% (approx) under full load conditions
Input / Output Connection Input Cable / Output Sockets
Ambient Temperature 5° C to 50° C
Standard kVA Ratings 500 VA to 5000 VA
