Uninterrupted Power Supplies (UPS)

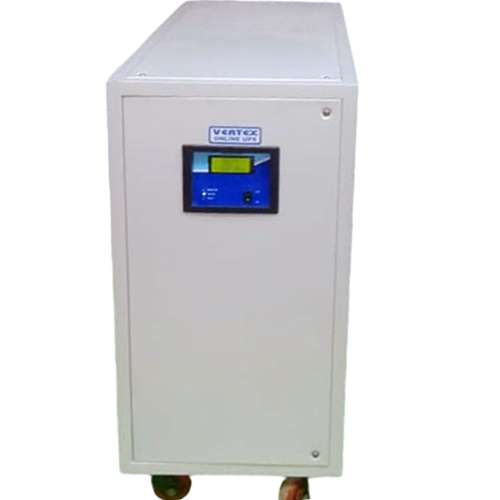

Online Uninterrupted Power Supplies (UPS):

Single-phase 1 kVA - 10 kVA

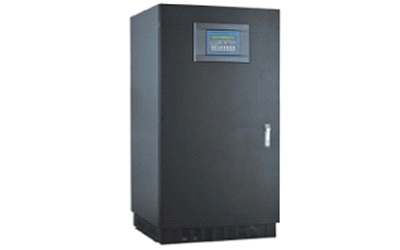

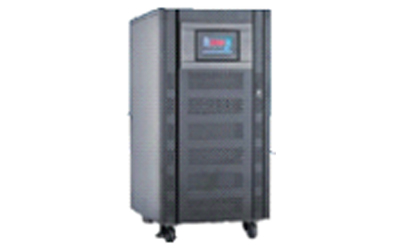

Three-phase 3 kVA - 200 kVA

Sophisticated and expensive devices running on electric supply, such as computers, are extremely vulnerable to damage from sudden fluctuations in the power supply. Vertex Online UPS solves this problem by providing your sensitive device with perfect insulation from the direct power supply while transmitting accurate voltage to the device. At Vertex, we make advanced online UPSs using a combination of cutting-edge technology, high-quality material, and a stringent QA and testing process. Available in single and three-phase configurations, Vertex Online UPSs are preferred by thousands of clients for their unparallel performance, energy efficiency, sleek and lightweight design, and silent functioning.

We also design low-maintenance UPSs with custom specifications, delivering the best solution based on your equipment protection, energy conservation and budget goals.

Protect your equipment with our efficient, reliable UPS systems that can be configured to meet the specific needs of your critical applications.

Product USPs / Salient Features

  • iconDSP-controlled system
  • iconNear unity Power Factor
  • iconSmaller footprint area
  • iconIntelligent battery charging management
  • iconAdvanced communication - RS 232
  • iconErgonomic design and silent functioning
  • iconHigh value proposition and durability

Product Applications:

  • CNC MachinesCNC Machines
  • Laser Cutting MachinesLaser Cutting Machines
  • Textile & Garment MachinesTextile & Garment Machines
  • Medical EquipmentMedical Equipment
  • Printing & Packaging MachinesPrinting & Packaging Machines
  • Process AutomationProcess Automation
  • Multiplex / Cinema TheatresMultiplex / Cinema Theatres
  • Pharma ProcessingPharma Processing
  • R & D labsR & D labs
  • Injection Moulding MachinesInjection Moulding Machines

Technical Specifications:

kVA RATINGS 10 kVA to 200 kVA
AC Input 415 V 3-Phase ± 15%
Frequency 50 Hz ± 6 Hz
DC Voltage 240 / 360 / 384 V DC
Charging Time 12 hours for 90% of full capacity
Charger Type CVCC 6 Pulse Controlled Rectifier Type
Technology IGBT Double Conversion
Output Voltage 400 / 415 V 3-Phase AC
Frequency 50 Hz ± 0.1 Hz
Voltage Regulation ± 1% for DC Input Variation & Output Load Variation
Waveform PWM Sine wave
Harmonic Distortion < 3%
Inverter Efficiency > 92%
Power Factor 0.8 pf
Overload 150% for 60 sec
Crest Factor 3 : 1
Phase Displacement 120° ± 1°
Transient Recovery 4% under full load change and corrected within 60 milli sec
Audible Noise Less than 60dB at 1 meter
Microprocessor Based LCD Display R/Y/B Output Voltages, Output Currents, Frequency, DC Voltage, Battery & Load Percentage
Communication SNMP (Optional)
Input Under/Over Voltage, Output Under/Over Voltage, Output Overload & Short Circuit, DC Under/Over Voltage, Single Phasing, Phase Unbalance
Indications & Alarms
Mains ON Indication
Inverter ON Indication
DC Low Indication & Alarm
Fault Indication & Alarm
Output Overload Indication & Alarm
Bypass Facility
Static By-pass Switch (Optional) Bi-Directional
Humidity Max 95% Non-Condensing
Operating Temperature 0° C to 40° C
Dimensions 1050x350x950 1250x450x1200
800x750x2000 2000x750x2050
